10l 20l 30l 40l 47l 50l
7782-44-7
Industrial
O2
Type | Diameter (mm) | Capacity (L) | Height (mm) | Weight (kg) | Working pressure(Mpa) | Design wall thickness(mm) | Material |
WMA108-1.4-15 | 108 | 1.4 | 240 | 2.8 | 15 | 2.9 | 37Mn |
WMA108-2-15 | 2 | 310 | 3.5 | ||||
WMA108-3-15 | 3 | 437 | 4.8 | ||||
WMA121-2.8-15 | 121 | 2.8 | 350 | 4.6 | 15 | 3.5 | 37Mn |
WMA121-3-15 | 3 | 375 | 4.9 | ||||
WMT121-4-15 | 4 | 477 | 5.8 | ||||
WMA140-4-15 | 140 | 4 | 372 | 5.77 | 15 | 4.1 | 37Mn |
WMA140-5-15 | 5 | 458 | 7.52 | ||||
WMA140-8-15 | 8 | 671 | 10.72 | ||||
WMA152-7-15 | 152 | 7 | 528 | 9.57 | 15 | 4.4 | 37Mn |
WMA152-8-15 | 8 | 600 | 10.66 | ||||
WMA152-10-15 | 10 | 726 | 12.6 | ||||
WMA152-15-15 | 15 | 1012 | 17.7 | ||||
WMA159-4-15 | 159 | 4 | 320 | 6.8 | 15 | 4.4(GB5099) 4.7(ISO 9809-3) | 37Mn |
WMA159-8-15 | 8 | 554 | 10.8 | ||||
WMA159-10-15 | 10 | 665 | 12.7 | ||||
WMA159-15-15 | 15 | 945 | 17.5 | ||||
WMA180-8-15 | 180 | 8 | 475 | 13.9 | 15 | 5.3 | 37Mn |
WMA180-10-15 | 10 | 565 | 16.2 | ||||
WMA180-12-15 | 12 | 655 | 18.4 | ||||
WMA180-15-15 | 15 | 785 | 21.7 | ||||
WMA180-20-15 | 20 | 1010 | 27.3 | ||||
WMA219-20-15 | 219 | 20 | 710 | 27.8 | 15 | 5.7(GB5099) 6.1( ISO 9809-3) | 37Mn |
WMA219-40-15 | 40 | 1325 | 48.5 | ||||
WMA219-45-15 | 45 | 1455 | 50.8 | ||||
WMA219-50-15 | 50 | 1605 | 55.6 | ||||
WZA232-40-15 | 232 | 40 | 1160 | 44.2 | 15 | 5.3 | 37Mn |
WZA232-47-15 | 47 | 1350 | 50.3 | ||||
WZA232-50-15 | 50 | 1430 | 53 | ||||
WZA267-40-15 | 267 | 40 | 930 | 45.5 | 15 | 5.8 | 37Mn |
WZA267-50-15 | 50 | 1127 | 53.9 | ||||
WZA267-70-15 | 70 | 1521 | 70.7 | ||||
WGA232-30-20 | 232 | 30 | 916 | 37.4 | 20 | 5.2 | 34CrMo4 |
WGA232-38-20 | 38 | 1127 | 44.8 | ||||
WGA232-40-20 | 40 | 1180 | 46.7 | ||||
WGA232-46.7-20 | 46.7 | 1358 | 52.9 | ||||
WGA232-47-20 | 47 | 1366 | 53.2 | ||||
WGA232-50-20 | 50 | 1445 | 56 | ||||
WGA232-60-20 | 60 | 1710 | 65.2 |
Product | Oxygen O2 | ||

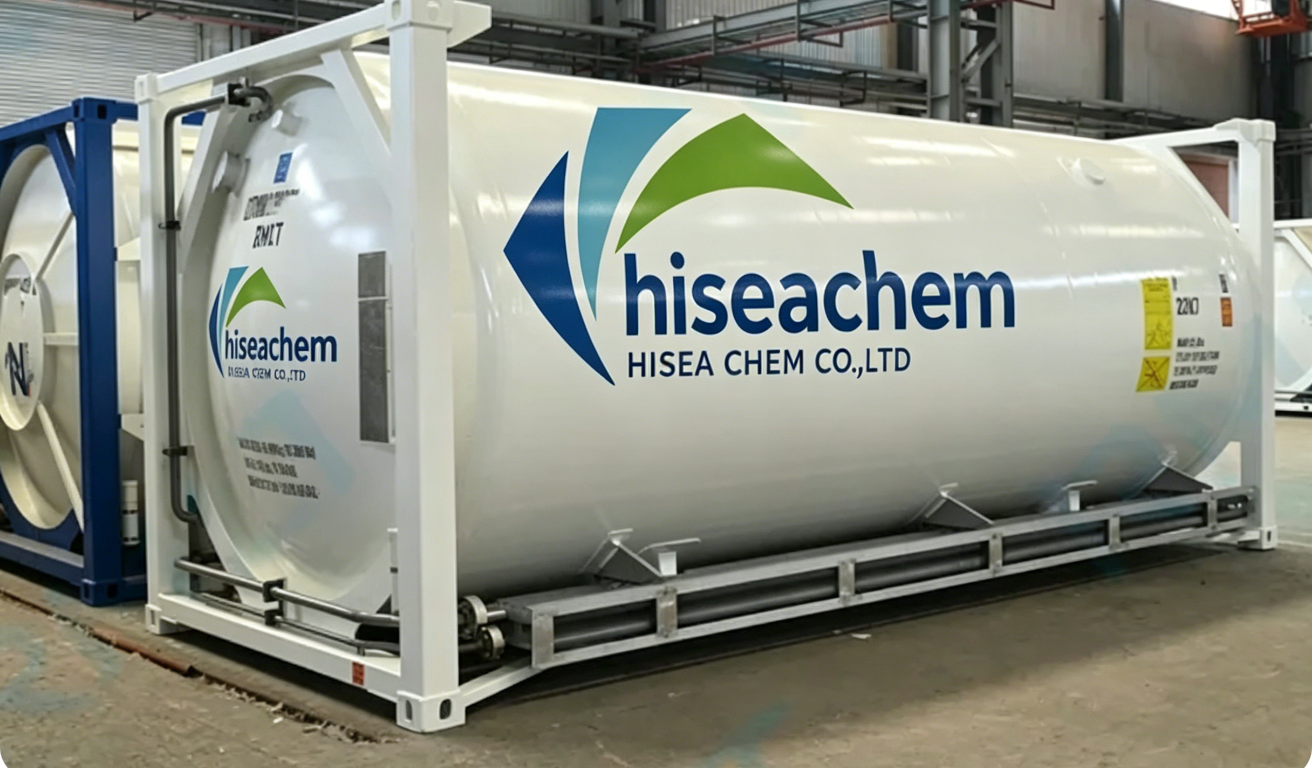

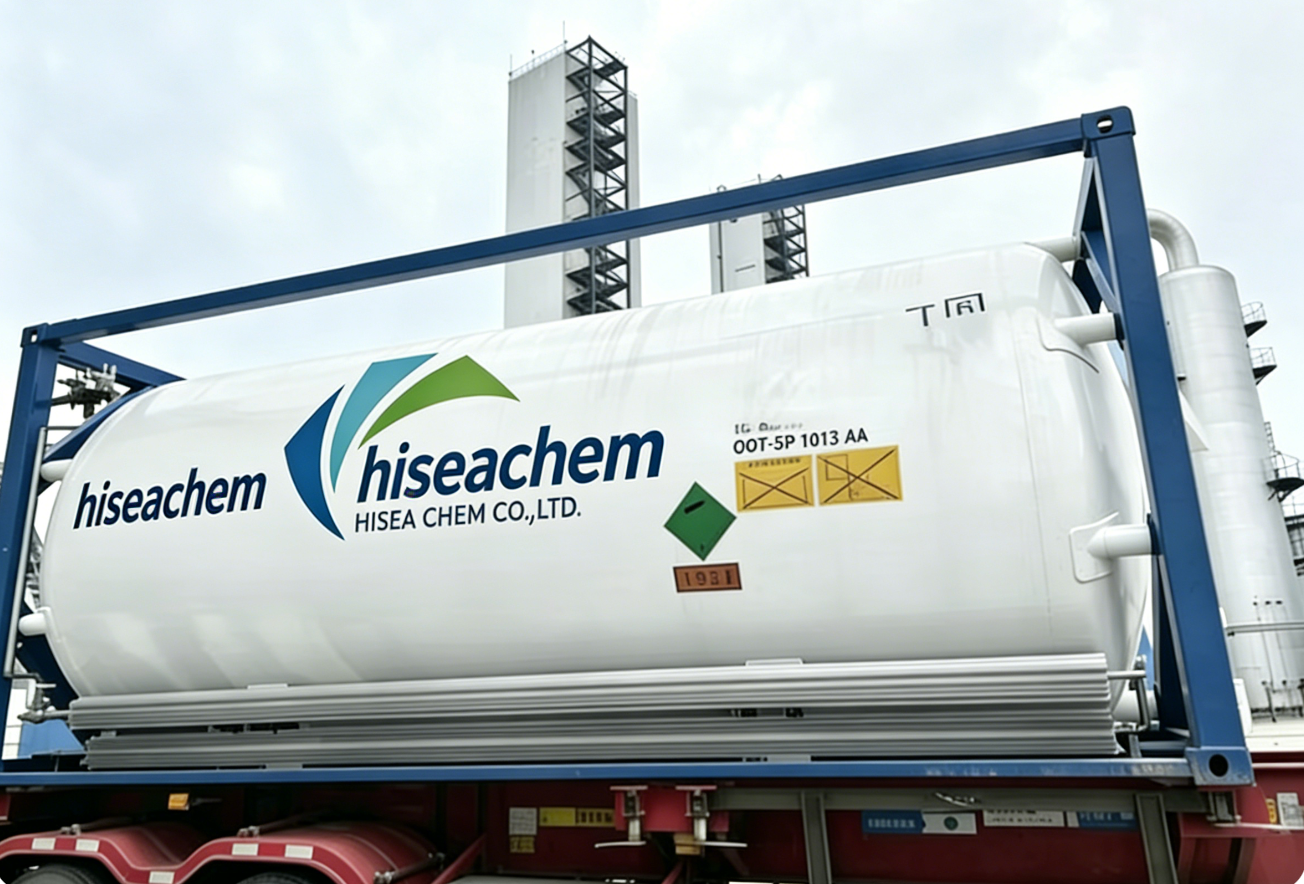

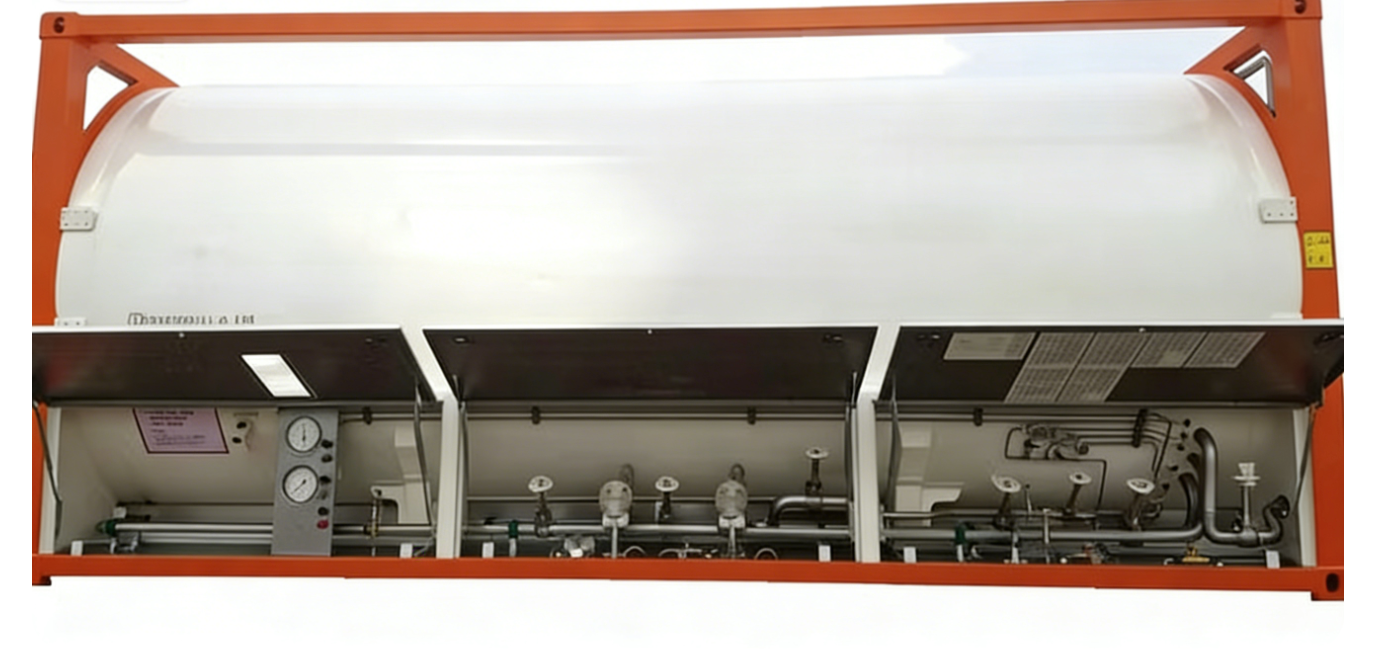

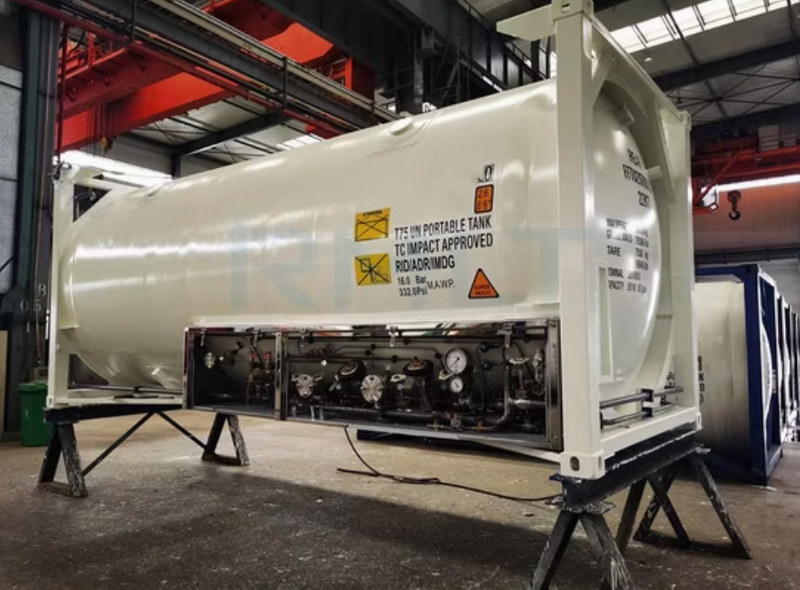

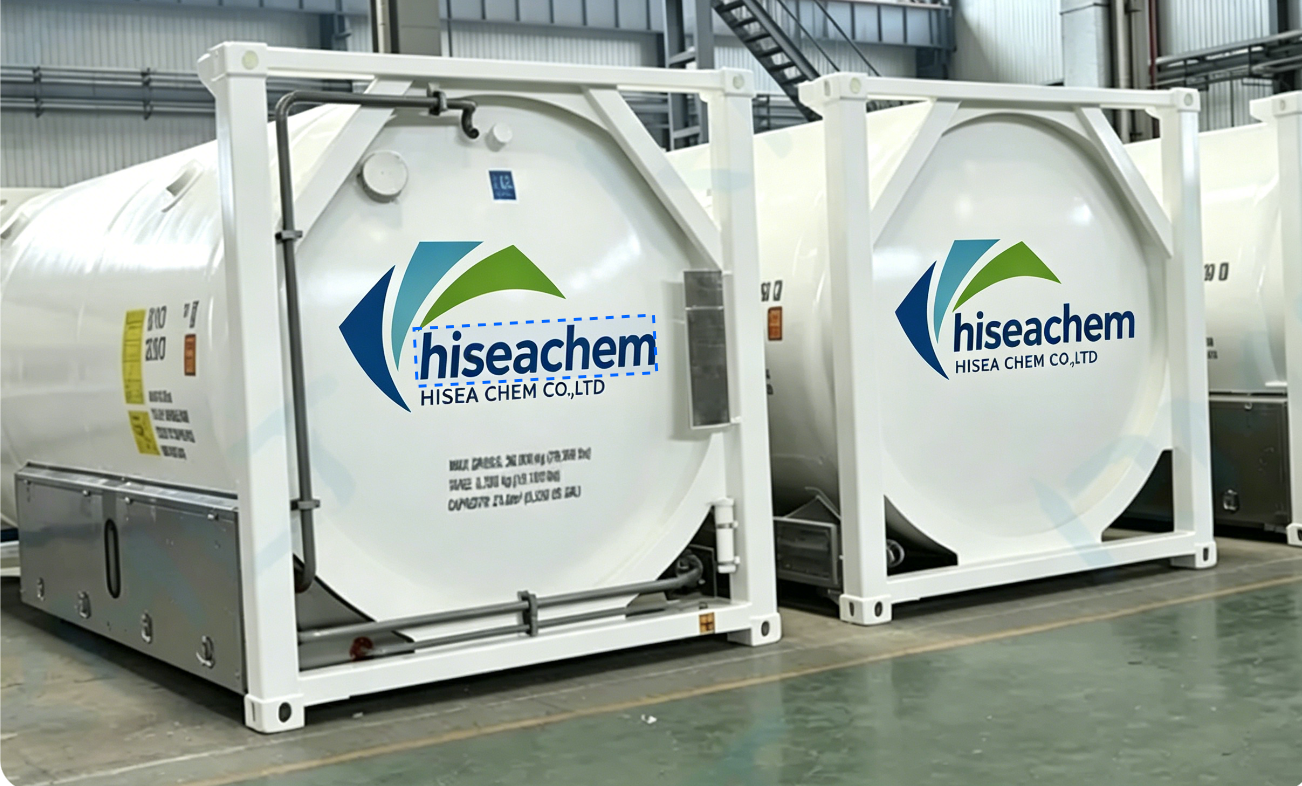

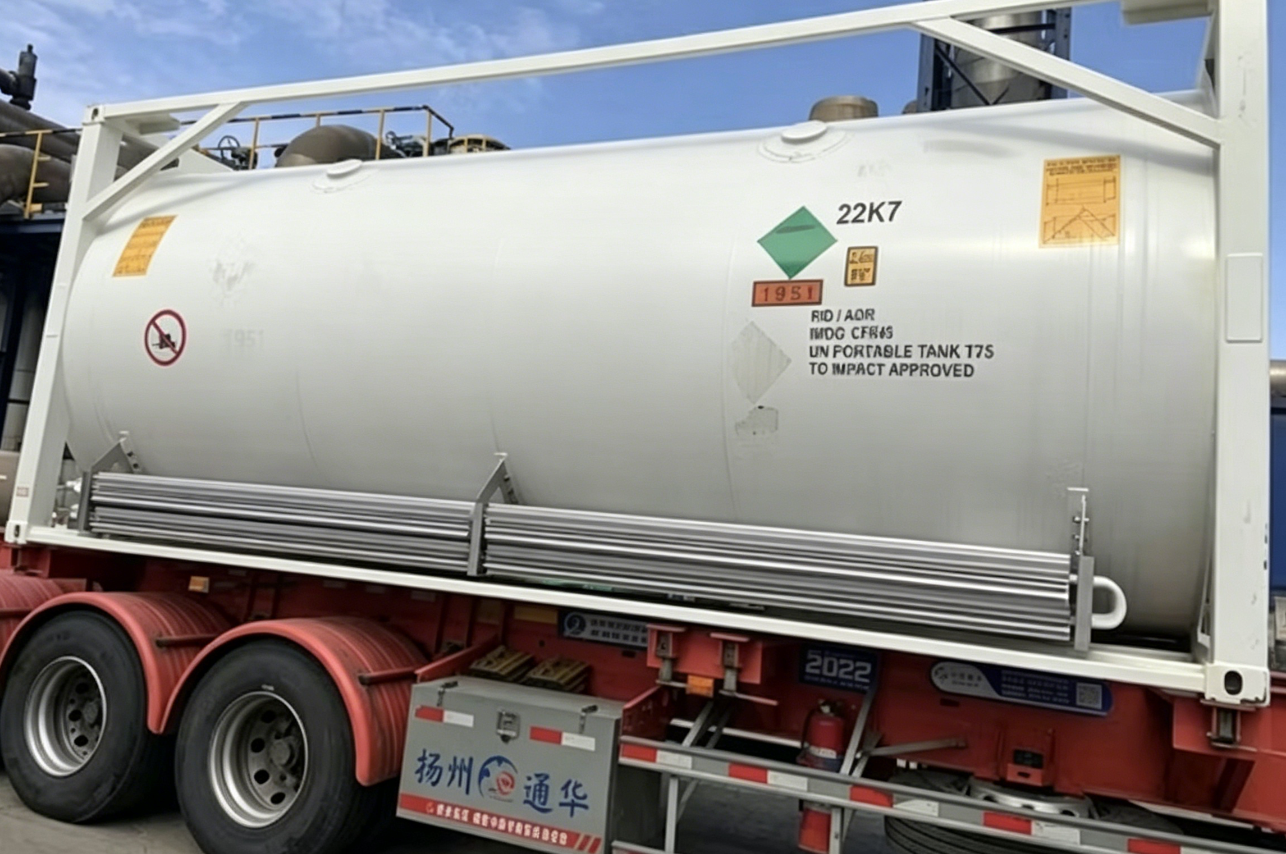

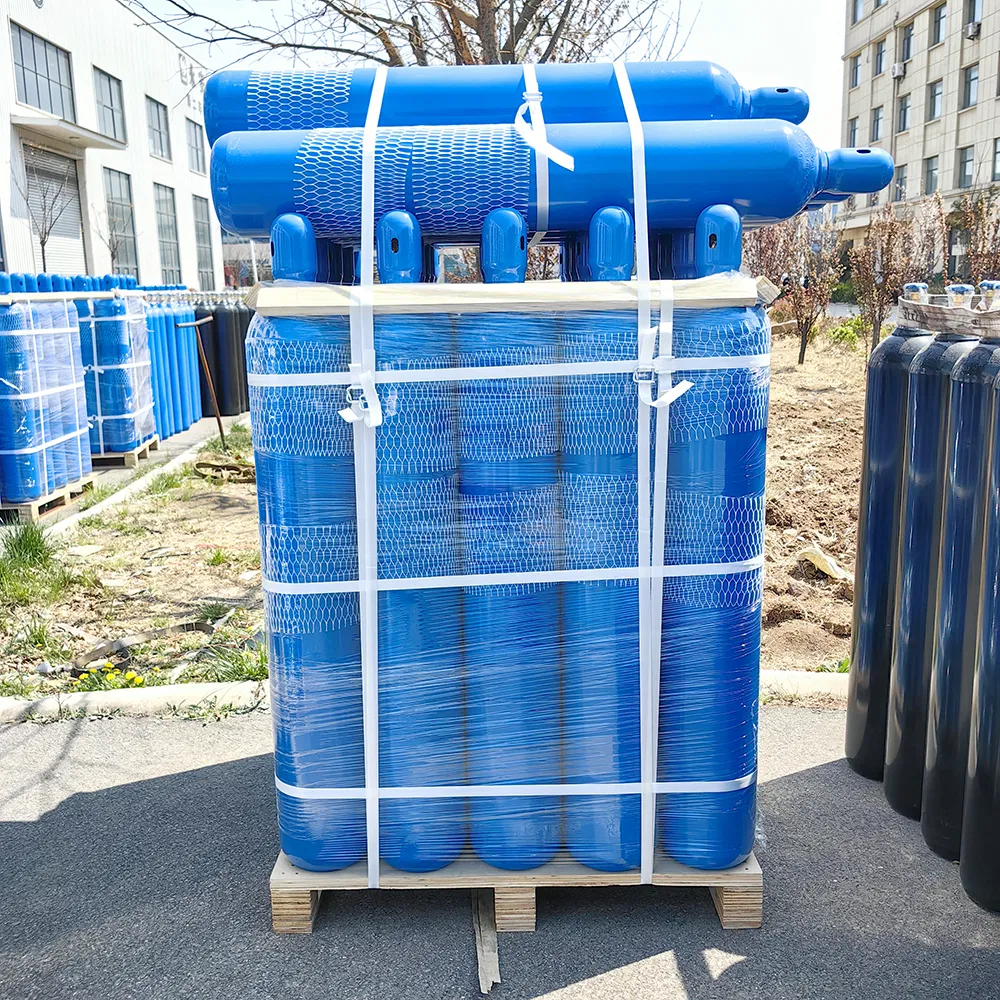

Package Size | 40Ltr Cylinder | 50Ltr Cylinder | ISO TANK |
Filling Content/Cyl | 5CBM | 10CBM | / |
QTY Loaded in 20'Container | 240Cyls | 200Cyls | |
Total Volume | 1200CBM | 2000CBM | |
Cylinder Tare Weight | 50Kgs | 55Kgs | |
Valve | PX-32A/QF-2/CGA540 | ||
Oxygen, symbol O, atomic number 8, is a colorless, odorless, tasteless gas essential for most living organisms. It constitutes about 21% of Earth's atmosphere. Discovered in 1774 by Joseph Priestley, oxygen supports cellular respiration, where it helps convert nutrients into energy. It also plays a key role in combustion and is vital for medical treatments, such as oxygen therapy for patients with breathing difficulties. Liquid oxygen is used in rocket propellants and industrial processes like steelmaking.
